Description :

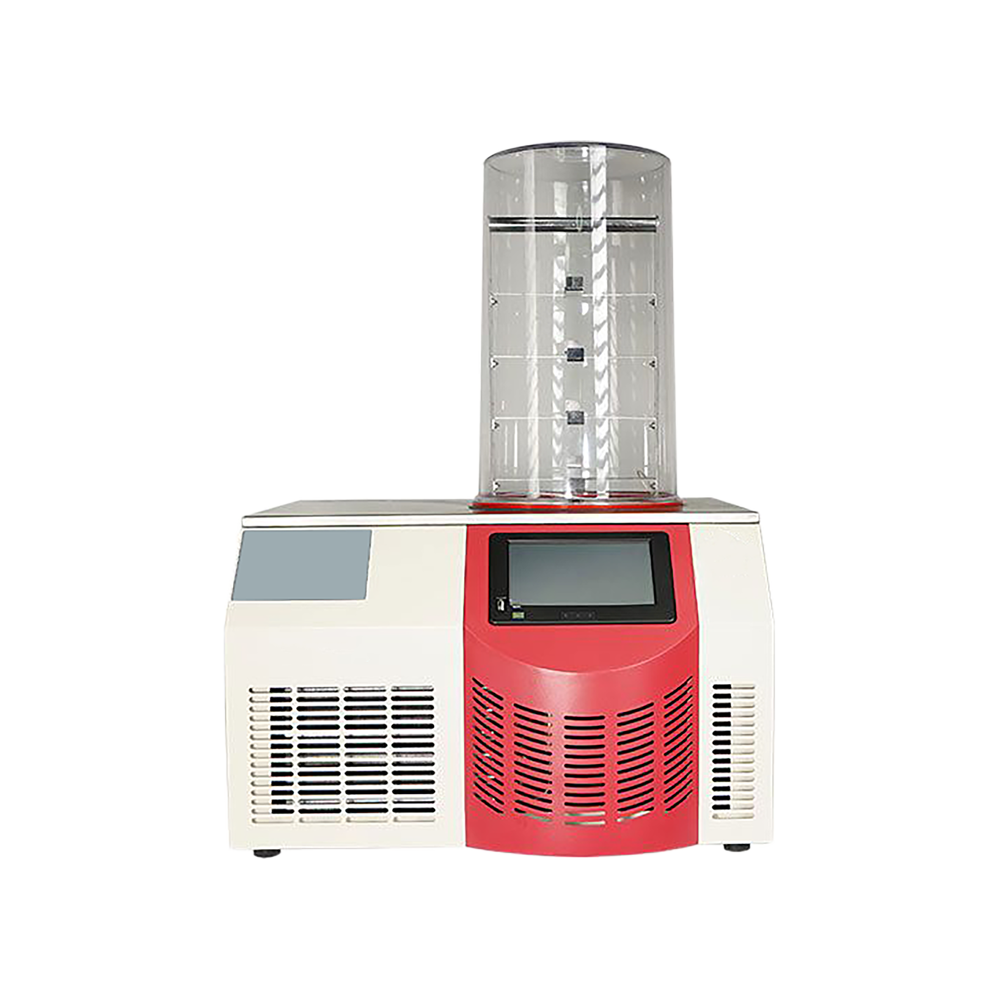

Benchtop Freeze Dryer TRBF-601 is a microprocessor controller had an adjustable product shelf, a condenser volume of 9 L, and a freeze-drying area of 0.12 m2. It is using a standard type of chamber. With a large screen LCD and a USB interface, And a 7-inch colorful touch panel that can display the temperature of the product sample, cold trap temperature, and vacuum, among other things. It is available in both digital and curved versions.
Specification
| Type |
Standard chamber |
| Vacuum Degree |
<10 Pa |
| Final Condenser Temp |
-60 ˚C |
| Freeze Drying Area |
0.12 m2 |
| Condenser Volume |
9 L |
| Quantity Of Shelf |
4 |
| Ice Condenser Capacity |
3 Kg |
| Material Loading Capacity |
1200 ml |
| Material Loading Capacity/ Shelf |
300 ml |
| Freeze Drying Time |
24 h |
| USB Interface |
Y |
| Drying Chamber |
transparent acrylic |
| Vacuum Pump |
Speed: 2 L/s |
| Control System |
microprocessor, large touch screen |
| Power Supply |
220/50Hz/60Hz |
| Exterior Dimension(W×D×H) |
582×541×374/684 mm |
| Penicillin Bottleφ12 |
920 |
| Penicillin Bottleφ16 |
480 |
| Penicillin Bottle Φ22 |
260 |
Features
- The 7 colorful touch panels can display the temperature of the product sample, cold trap temperature, and vacuum, among other things, in digital and curve formats
- It is optional for the gas interface because it can inject inert gas
- The electric heater defrost feature for the cold trap is acceptable
- The ergonomic design of the touchscreen display allows for more comfortable operation
- It is possible to have sublimation temperatures
- Rack heating is optional, which aids in production testing
- A cold trap made of stainless steel, product shelf that can be adjusted
- Insulation material cover, compressed air SECOP
- Shelf for pre-freezing, having with a condenser to high efficiency
- Touch-screen display with USB interface with a vacuum connection that enhances the value
Application
The Freeze Dryer is widely used in the pharmaceutical, biological, chemical, and food industries. Freeze-drying technology is used for heat-sensitive materials such as antimicrobial drugs, immunizations, blood components, hormone levels, and other medical and biological enzymes.
