Description :

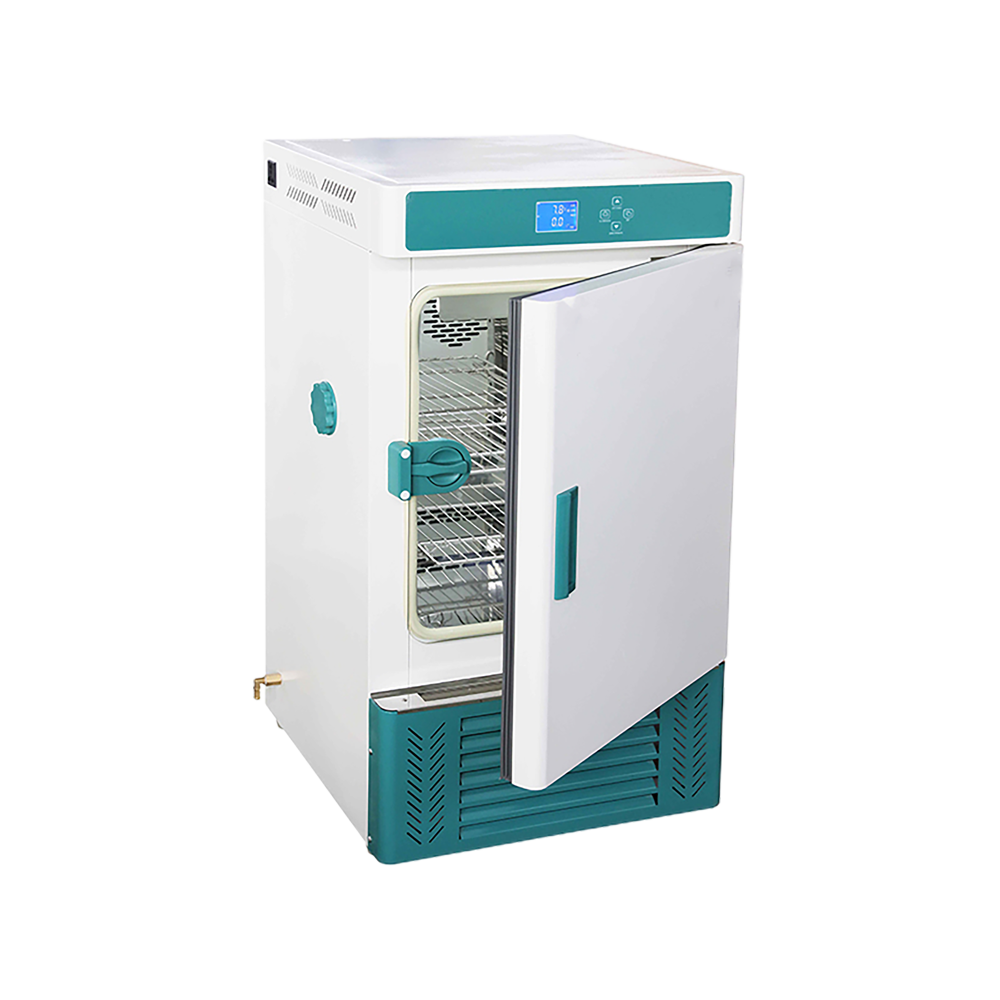

BOD Refrigerated Incubator TRBI-601 is equipped with an inner mirror stainless-steel chamber with four square semicircle transactions. Controlled by a microcomputer system. It is easy to clean, and very convenient. Presented with two shelves, that can be adjustable. It is equipped with a double door seal. Intended for use with an LCD. Possessing a fluoride-free refrigerator and gentle breeze circulation is necessary.
Specification
| Temperature Range |
0 to 65 ℃ |
| Temperature Resolution Ratio |
0.1 ℃ |
| Temperature Motion |
High Temp.：±0.5 ℃ Low Temp.：±1 ℃ |
| Temperature Uniformity |
±1.5 ℃ |
| Inner Chamber |
Mirror Stainless Steel |
| Outer Shell |
Cold rolling steel electrostatic spraying exterior |
| Compressor |
Air-cooled hermetic compressor |
| Cryogen |
R134a |
| Defrost Structure |
Automatic control intelligent defrosting |
| Test Hole |
Inner diameter 43mm(one) |
| Controlled External Power Supply |
Outer universal socket (one), inner waterproof socket(one) |
| Power Rating |
0.8 KW |
| Insulation Layer |
Polyurethane |
| Heater |
Stainless steel heater |
| Temperature Setting Mode |
Touch button setting |
| Temperature Display Mode |
LCD upper screen; setting temperature: the lower row |
| Timer |
0 to 99.9h Without E model：0 to 99.9h×30 segment(with timing wait function) |
| Operation Function |
E model Fixed value operation timing function, auto-stop,Without E model Program operation |
| Sensor |
PT100 |
| Inner Chamber size(W×L×H) |
420×350×500 mm |
| Exterior size (W×L×H) |
570×560×1030 mm |
| Packing size (W×L×H) |
730×720×1190 mm |
| Volume |
70L |
| Shelf number |
9 |
| Power Supply Current rating |
AC220V/2.3A |
| NW |
69 Kg |
| GW |
92 Kg |
| Shelf |
2 |
| Shelf Frame |
4 |
Features
- Treated steel inward chamber, foursquare semicircle progress, advantageous to clean; space between racks is customizable
- Miniature computer control system
- LCD with elements of time setting, boundary retaining, and power reset recuperating
- Without fluoride refrigeration and delicate breeze course
- Test opening of 52mm on the left half of the holder
- Twofold door seal
- Treated glass with silicon elastic seal inward entryway and attractive elastic seal external entryway
- Internal chamber with light for advantageous perception
Application
Used to store a variety of samples of biological origin such as blood, derivatives of blood, biological reagents, vaccines, medicines, flammable chemicals, ribonucleic acid (RBA), and deoxyribonucleic acid (DNA).
