Description :

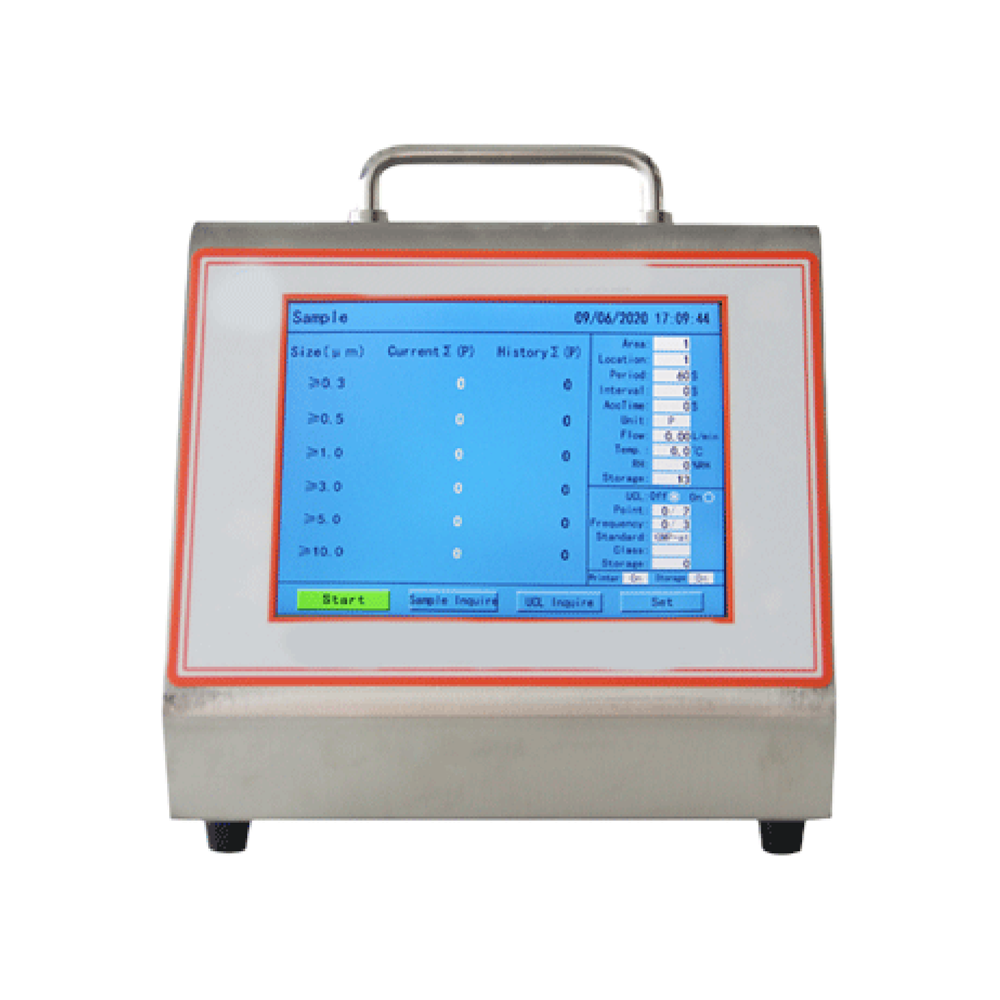

Laser Counter TRCL-602 with a six-channel control unit can be used to identify particles in rooms. A beam diode is used for illumination. The software generates data files that can be viewed or exported to an Excel spreadsheet on a computer. Having a flow rate of 28.3 L per minute. A large LCD screen display shows the working parameters and has 1000 sample data storing capacity with 35000 particles/L determination.
Specification
| Size Channels |
0.3, 0.5, 1, 3, 5, 10 um |
| Flow Rate |
28.3L/min (Imported Pump) |
| Atmosphere Pressure |
86Kpa to 106Kpa |
| Environmental Temperature |
10 ˚C to 35 ˚C |
| Humidity |
20% to 75%RH |
| Maximum Rated Particle Concentration |
35000 particles/L |
| Light Source |
Laser Diode |
| Calculation |
95%UCL calculation, Display Particle Concentration |
| Sample Time |
1 to 10min |
| Zero Count |
10min |
| Location Labels |
0 to 999 |
| Printer |
Built-in Thermal Printer |
| Data Storage |
1000 Samples (With PC Software) |
| Operating Time |
3 hours |
| Power Source |
DC 16.8V (Lithium-Ion Battery) |
| Maximum Consumption |
48 W |
| Weight |
7.5 Kg |
Features
- A large LCD showing the particle count for all channels
- Particle detection using a laser sensor
- The illumination in the device is a laser diode
- The counter has a storage capacity of 1000 samples of data
- The software generates data files for viewing or exporting to an Excel spreadsheet on a computer
- It has an in-built thermal sensitive printer for direct printing
Application
Microelectronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace, and other fields make extensive use of everything.
