Description :

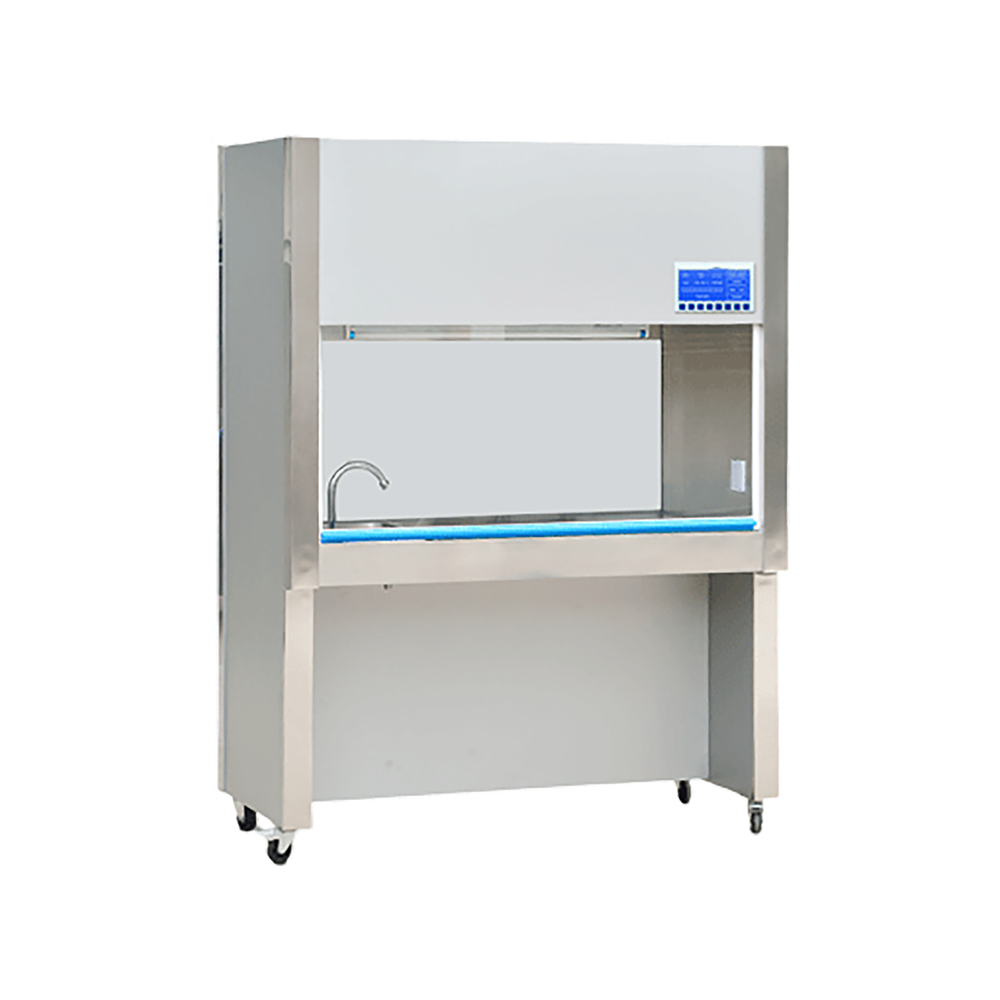

Fume Hood TRFH-602is a steel-made ventilation cabinet with a solvent disinfectant storage tank. It is safe and reliable. Internal air is emitting at a rate of 0.5 m/s, resulting in high ventilation efficiency and a ventilation capacity of 450 to 1600 m3/h. It is having with a 1.2 M fume hood. This window is designed with a completeautomatic stable type and was built with appropriate poise rapid take to its place.A liquid crystal controller controls the screen. A ventilation systems system and a movable glass door are installed inside the upper portion.
Specification
| Discharging Speed |
within 0.3 m to 0.6 m/s adjustable |
| Inlet Pressure |
>0.5 Pa |
| Power |
400 W |
| Power Supply |
AC, 220 V/50 Hz |
| Dimension Of Working Area (W1×D1×H1) |
1030×700×600mm |
| Overall Dimension W×D×H |
1200×760×1950mm |
| Weight |
180 Kg |
Features
- Water, electricity, gas, and air conditioning are all interrogatively into the cabinet
- Inside, there is a multifunctional socket
- A stainless steel water tank with liquid antiseptic is installation on the bottom
- It is secure and dependable
- The ventilation capacity is 450 to 1600 m3/h, and the air circulation effectiveness is high
- It has a sliding glass door that can be open and closed
- The flow plate makes bad gases at different heights discharged from different parts
Application
Fume hoods are used in research and other work, which involves the production and development of low-toxic vapors, and hydrocarbons that are dangerous to human health, as well as collaboration with substances that necessitate the energetic removal of ancillary product lines from the working zone.Work with hazardous and potentially hazardous pathogenic agents and microorganisms.
