Description :

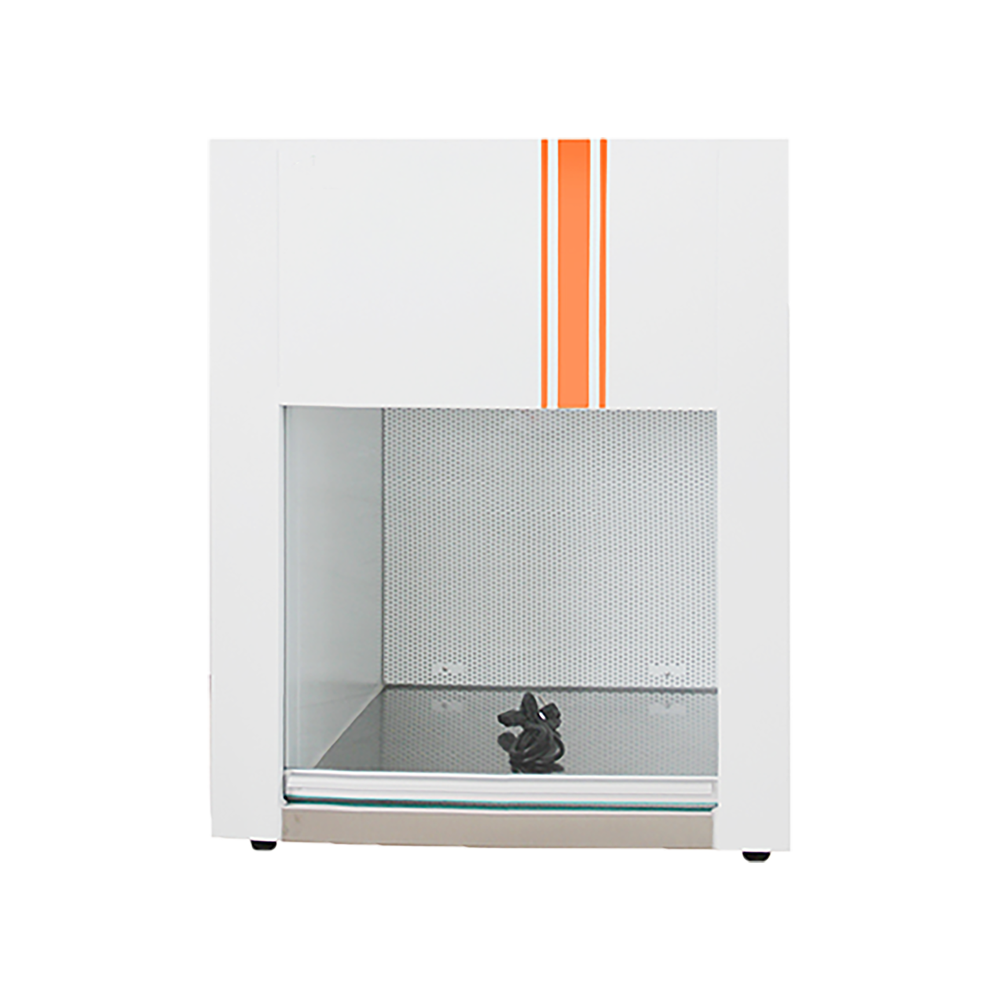

Horizontal Laminar flow cabinet TRHL-604 is a local purification unit used in a dust-free and aseptic clean environment. A similar enclosure creates a particle-free working environment by passing air through a filtration system. It comes with an easy-to-use quasi-glass damper. Comes with a stainless steel working area, the Specification of the ultraviolet lamp is 1/20 W. It provides in a small and exquisite manner. It is presented with the air supply mode and supplies through both horizontal and vertical manner.
Specification
| Cleanliness Level |
Class 100 @ ≥ 0.5μM |
| Number Of Colonies |
≤0.5pcs/dish hour (Φ90mm culture plate) |
| Average Wind Speed |
0.25 to 0.45 m/s (Fast and slow) |
| Noise |
≤62dB (A) |
| Vibration Half Peak |
≤0.5μM (x, y, z-direction) |
| Illuminance |
≥300 Lx |
| Power Supply |
AC single-phase220V/50 Hz |
| Working Area |
690×350×490 mm |
| Overall Dimension |
850×530×850 mm |
| High-Efficiency Filter Specification And Quantity |
470×455×38×1 |
| Specification And Quantity Of Fluorescent Lamp/Ultraviolet Lamp |
12W×1/20W×1 |
Features
- Cold-rolled plate welding equipped throughout the equipment
- Comes with a stainless steel working area
- It is presented with a HEPA filter
- Built with a glass sliding door, and with a UV lamp and fluorescent lamp
- The surface electrostatically sprayed
- The air supply mode into the vertical and horizontal air supply
- Controlled by a simple to use quasi-closed glass damper
- It is small and exquisite
- It can operate freely on the general workbench, making it ideal for use in small studios
- A remote switch with fast controls the fan system
Application
Used in the aseptic and dust-free clean environment in the fields of medical and health, biological engineering, scientific experiment, and so on.
