Description :

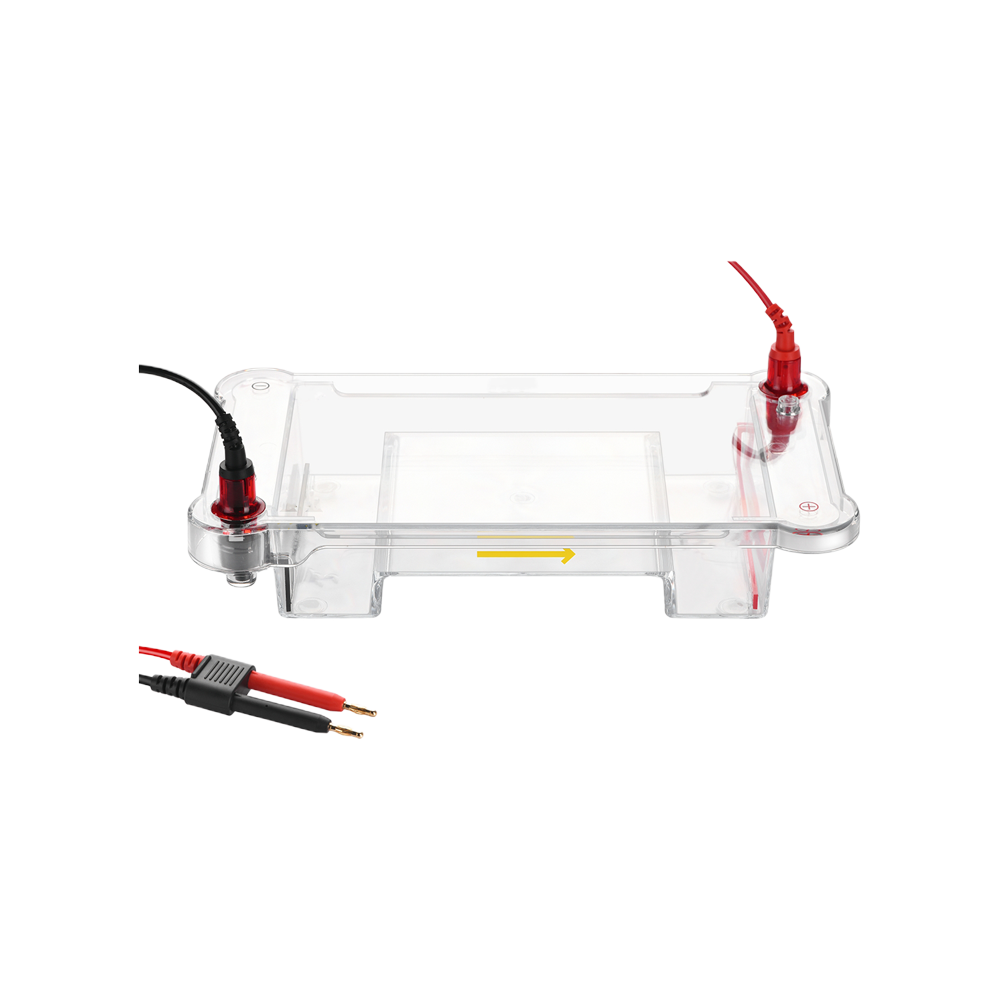

Multipurpose Horizontal Electrophoresis Cell TRME-601 is primarily used for agarose gels of DNA and RNA, and it can add samples via pipette. It includes the Multi-specification gel tray: 30×130mm; 130×65mm; 65×130mm; 65×65mm, as well as PCR electrophoresis with the comb, 27 wells/4 rows. It has a moveable e-engine and is designed without a washer. It is a straightforward replacement with no leaks.
Specification
| Buffering liquid volume |
1000ml |
| Gel area |
130×130mm, 130×65mm, 65×130mm, 65×65mm |
| Dimension (L×W×H) |
300×170×80mm |
| Comb specification |
0.75mm:7+7 wells/14 wells, 9+9 wells/19wells, 1.0 mm: 2.0mm: 3+2 wells/3+3 wells12+12 wells/27 wells, 1.5mm: 7+7 wells/14 wells, 9+9 wells/19 wells; |
| Weight |
1.1Kg |
Features
- PCR electrophoresis: 27 wells*4 rows, 108 samples obtainable (including maker)
- Built-in movable e-engine with no washer, simple replacement, and no leakage
- Gel tray with multiple specifications: 30130mm; 13065mm; 65130mm; 6565mm
- The comb with 14, 19, and 27 wells supports 8 and 12 sample adding channels, respectively
- It can add through a pipette and is primarily used for agarose gels of DNA and RNA
Application
It's ideal for a long period of separation. Electrophoresis is primarily used in vaccine, medication, forensics, DNA profiling, and other life science applications in laboratory settings. In addition to mining and food science, the procedure is used in other industries
