Description :

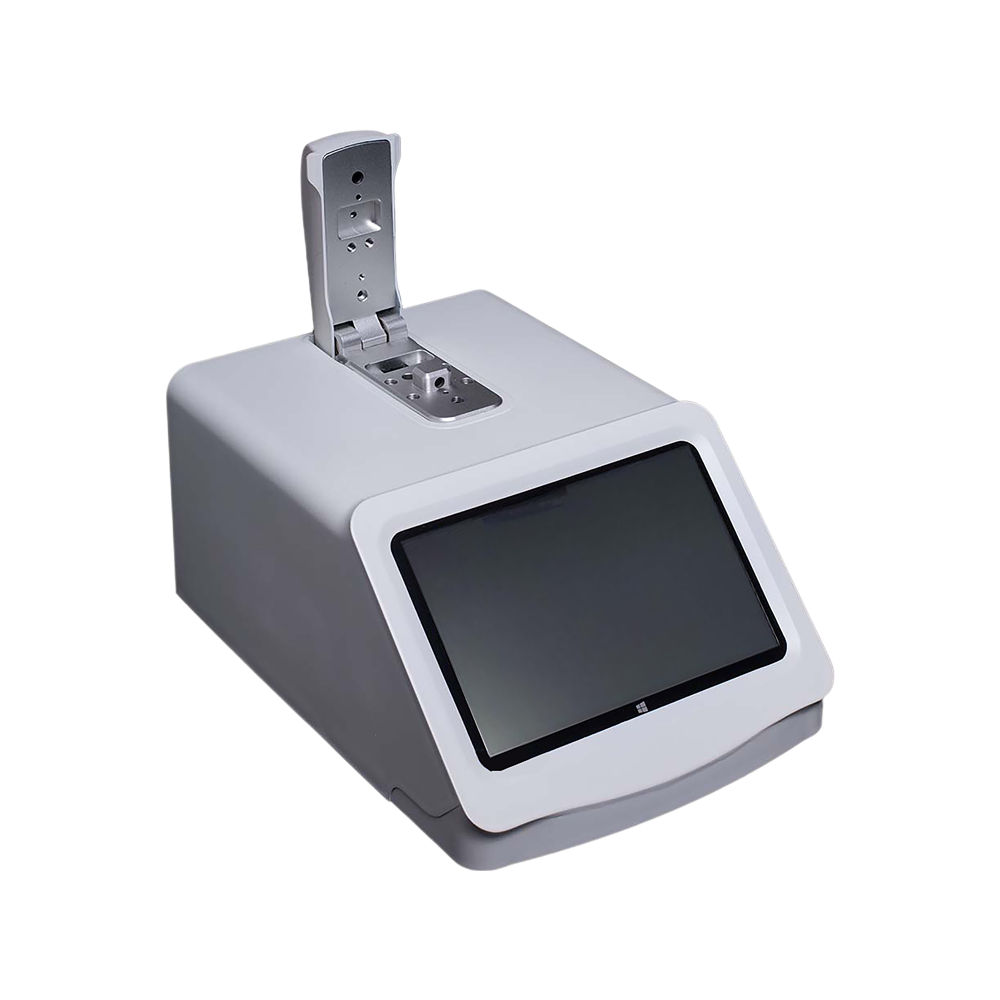

Micro-Spectrophotometer TRMS-601 is an innovative type of full-wavelength spectrophotometer that features a constructed Win10 system, equipped with a 7-inch high-definition display, and a full touch process. It has a wavelength range of 190 to 1100 nm. Built-in Bluetooth and WIFI allow for remote operation and wireless printing of results. It can connect to the data output port.
Specification
| Light Path |
1mm |
| sample Volume |
1 to 2μL |
| Detection Range |
190 to 850 nm |
| Wavelength Range |
190 to 1100 nm |
| Wavelength Accuracy |
± 1nm |
| Wavelength Resolution |
2 nm (FWHM at Hg 546 nm) |
| Accuracy of absorbance |
0.002 Abs |
| Absorbance Accuracy |
1% (0.76 absorbance at 350nm) |
| Absorbance Range |
0.02 to 15Abs, equivalent to 10mm |
| Detection Time |
less than 3 s |
| Nucleic acid range |
1 to 750 mg/μl, dsDNA |
| Protein measurement range |
0.1 to 40 mg/ml, BSA |
| Sample measurement time |
less than 5 seconds |
| Built-in Method |
Nucleic Acid, Protein, Full Wavelength Scan |
| Machine Size |
20×30×20 cm |
| Machine Weight |
2.8 kg |
| Light Source |
Xenon lamp |
| Detector |
The 3684-element linear silicide CCD array |
Features
- Built-in Windows 10 operating system, 7-inch high-definition display, full touch operation
- Built-in storage space of 32GB for the data output method
- Users could save quantification result data and traditional methods straight in worksheet mode with a digital manual
- Two USB ports that can connect to a variety of devices
- Built-in Bluetooth and WIFI allow for remote operation and wireless printing of results
Application
Used in detecting the nucleic acid, protein, colloidal, microarray samples, and conventional full wavelengths scanning, etc.
