Description :

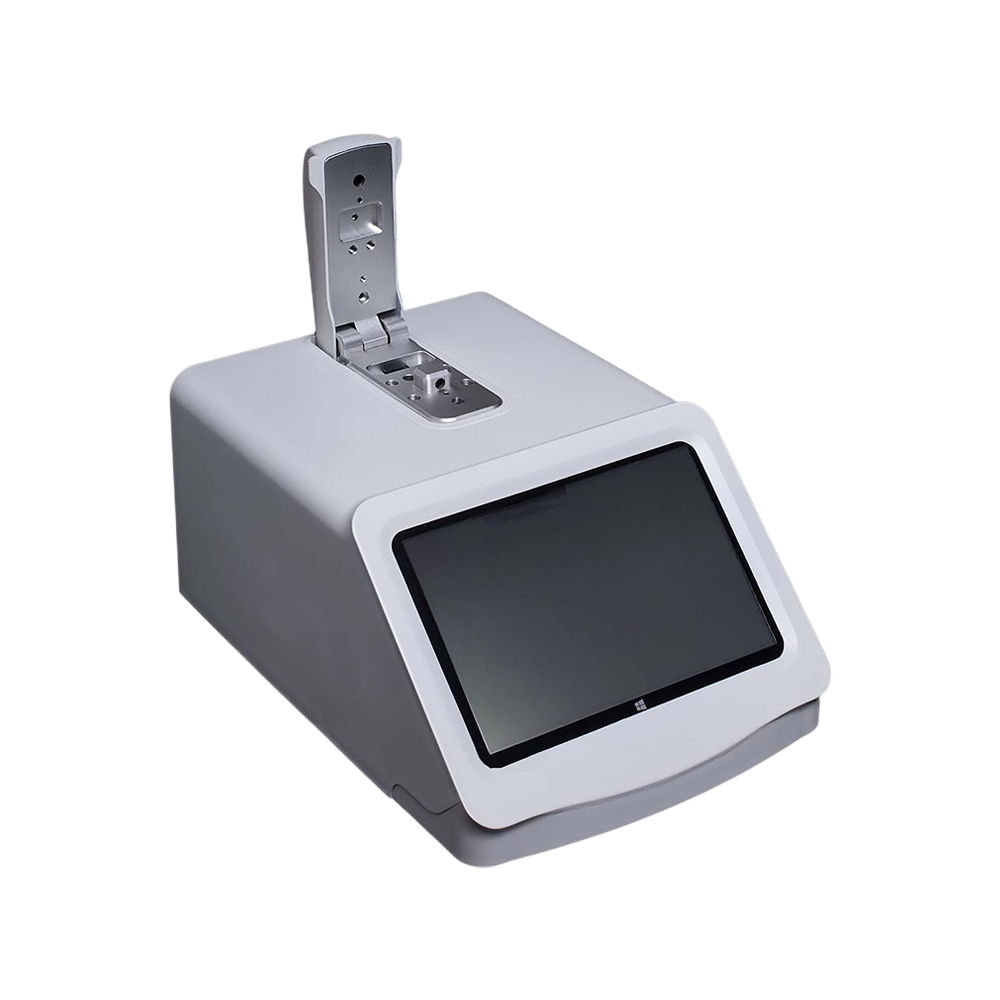

Micro-spectrophotometer TRMS-602 is a new type of full-wavelength spectrophotometer used for the detection of samples. Constructed of stainless steel and quartz fiber with a built-in Bluetooth and WIFI modules, allowing for remote operation and wireless printing of results. It has a Wavelength Perusing Range of 190 to 850 nm, with an optical path of 1/0.5/0.05 mm automatic conversion.
Specification
| Optical Path |
1/0.5/0.05 mm automatic conversion |
| Optical Range |
190 to 1100 nm |
| Sample Volume |
0.3 to 2.0 μl |
| Light Source |
Long-life Xenon lamp |
| Detector |
3864 linear CCD array |
| Wavelength scanning Range |
190 to 850 nm |
| Wavelength Accuracy |
±1 nm |
| Wavelength Resolution |
2 nm (FWHM Hg 546 nm) |
| Absorbance Accuracy |
0.002 Abs |
| Absorbance Range |
1% (0.76 absorbances at 350 nm) |
| Nucleic acid Range |
0.002 to 300 Abs (equivalent to 10mm optical path) |
| Protein Range |
0.4 to 15000 ng/μl (ds-DNA) |
| Detection Time |
0.01 to 400 mg/ml (BSA) |
| Machine Size |
less than 3s |
| Weight |
20×30×20 cm |
Features
- There is no need to warm up checking can begin at any time
- Control and operation of the instrument, built-in Win10 system, constructed 7-inch high-definition showcase, full touch operation
- 32GB of storage space is pre-installed
- Two USB ports can be connected to a variety of devices
- The platform is constructed out of stainless steel and quartz fiber
- Built-in fiber to prevent fiber breakage caused by external force collision, resulting in chaotic measurement results
- Built-in Bluetooth and WIFI allow for remote operation and wireless printing of results
- Users can save measuring device result data and design techniques straight in spreadsheet mode with a digital manual
Application
Applicable for detecting nucleic acid, protein, colloidal, and proteomic samples, as well as conventional full-wavelength scanning, among other things.
