Description :

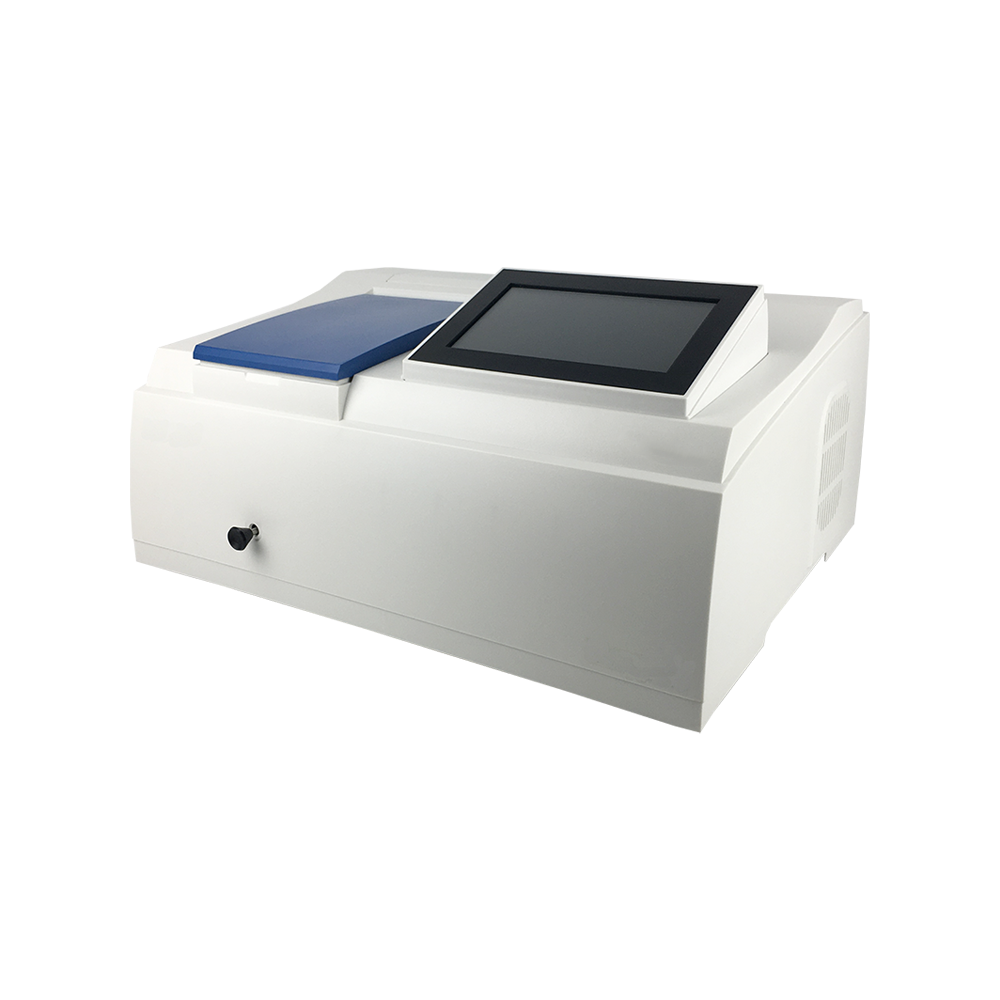

Single Beam UV VIS Spectrophotometer TRSUV-608 is a small device with a 7-inch multi-color touch screen. It has an automatic wavelength range of 325 to 1100 nm as well as a bandwidth of 4 nm. Having patented technology that allows for simple and effective human-computer interaction with a clear display of test data It has a photometric range of 0.0 to 200.0 % T, -0.301 to 4.000A, and 0.000 to 9999 C with an accuracy of ± 0.5% T. It includes a sample compartment for 5 to 50 mm cuvettes.
Specification
| Photometry |
Single Beam |
| Monochromatic Type |
Czerny-Turner |
| Focal Length |
160 mm |
| Grating |
1200 lines/mm |
| Detector |
Silicon Photocell |
| Spectrum Bandwidth |
4 nm |
| Wavelength Range |
325 to 1100 nm |
| Wavelength Accuracy |
± 1 nm |
| Wavelength Repeatability |
≤ 0.5 nm |
| Photometric Range |
0.0 to 200.0 % T -0.301 to 4.000 A 0.000 to 9999 C |
| Photometric Accuracy |
± 0.3% T, ± 0.002Abs (0 to 0.5 A) ± 0.004Abs (0.5 to 1 A) |
| Photometric Repeatability |
≤ 0.15% T, 0.001Abs (0 to 0.5 A) 0.002Abs (0.5 to 1 A) |
| Wavelength Scanning Speed |
- |
| Baseline Flatness |
- |
| Stray Light |
≤ 0.1% T(measured at NaNO2 at 360 nm) |
| Noise |
100%(T) noise ≤ 0.5% (T), 0% (T) noise ≤ 0.2% (T) |
| Baseline Drift |
± 0.002 Abs / 30 mins ( 500nm after preheat warm up for 2 hours ) |
| Power |
AC220 V ± 22 V, 50Hz ± 1Hz, 100 W |
| Packing Size |
630 mm×610 mm×500 mm |
| Weight |
0.16m³, 25 Kg |
Features
- 7-inch multi-color touch screen and patented technology for simple and effective human-computer interaction with clear test data display
- A built-in thermal printer for printing test results and facilitating the creation and storage of data reports
- A USB communication port and UV professional data processing software enables data processing and mapping functions
- The storage of large amounts of data files, and help customers with a second development
- Sample compartment for 5 to 50mm cuvettes
- Automatic wavelength selection, which is both quick and accurate
- Scanning kinetic time scanning, automatic wavelength, linear regression, direct concentration readout, peak detection, regular printing, and so on
- Power shutdown protection measures that are advanced to memorize detector data and regression
- To achieve fast initialization, the equation and instrument correction parameters must be known ahead of time
- Lifelong safety for tungsten and deuterium lamps
Application
It is being combined with an ARM processed core, has test speeds and functions possessed by high-end instruments. The instrument can meet the requirement of quantitative analysis for most samples conducted within the visible and ultraviolet-visible spectral range in conventional laboratories and is suitable for use in medicine and health, clinical examination, biochemical, petrochemical, environmental protection, quality control departments, colleges, and universities and others.
