Description :

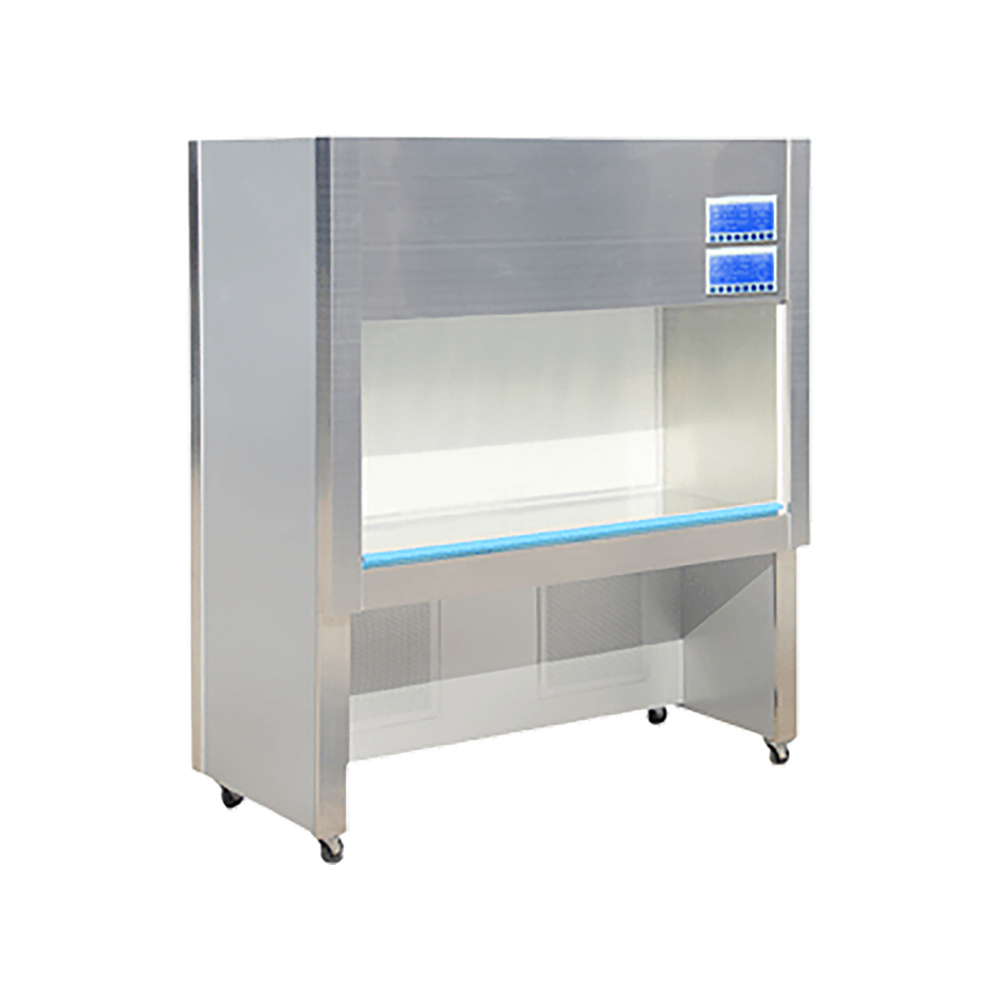

Vertical and Horizontal Laminar Flow Cabinet TRVHC-602material is stainless steel, and a wind volume adjustable fan system is used. Based on a double-single dimensional system. The average speed of wind ranges from 0.25 to 0.45 m/s. It has a sliding glass door that allows for easy observation.The range of illumination is 300LX. The device prevents outside gas from entering the operating room, preventing a strange odor from entering.
Specification
| The Average Wind Speed |
0.25 to 0.45m/s (Speed two-speed) |
| Noise |
≤62 dB |
| Power Supply |
AC, 220 V/50Hz |
| MaximumPower Consumption |
800 W |
| Illumination |
≥300 LX |
| Number of Bacteria |
≤0.5per utensil. Hour (90mm utensil) |
| Half Ventilation Peak Value |
≤ 3μm (XYZ direction) |
| Efficient Filter Specifications And Quantities |
1320×600×38/1320×484×38 |
| Specification And Number Of Fluorescent Lamp Or UV Lamp Of Ultraviolet Lights |
30 W×1/30 W×1 |
| Suited Number |
double-Single |
| Dimension Of Working Area(W1×D1×H1) |
1360×500×620 mm |
| Overall Dimension W×D×H |
1600×760×1800 mm |
| Weight |
300 Kg |
Features
- The vertical closed bench effectively prevents outside gas from entering
- Able to operate area and prevents the slightly odd aroma
- A wind volume adjustable fan system
- A light-touch type switch and a dual-speed voltage regulation device
- The personalized design takes into account all of the user's requirements
- It uses a spring-type sliding door to allow the door to be a gear in the desired position
- It is easier to use
- Filters and electric components can easily exchange by opening the front cover directly
- Use the LED panel to your advantage
- Stainless steel is used for the workspace
Application
Widely used in medical treatment, chemical experimentation, electron, precise machinery, instrument, apparatus, medical preparation, operating room, foodstuff, beverages, daily-use cosmetics, stock raising, and aviation, as well as providing a germ-free, dust-free, clean environment.
