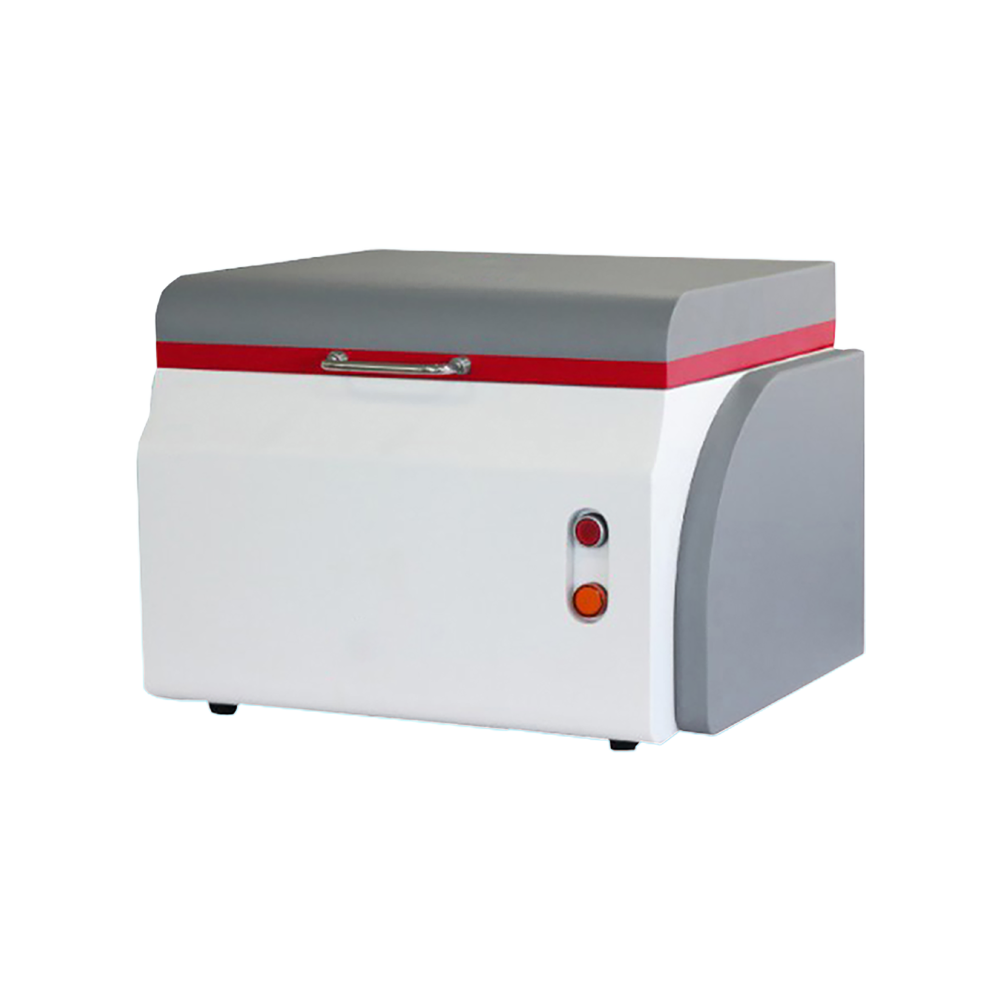

TRXS-601

Energy Dispersion X-ray Fluorescence Spectrometer
TRXS-601

Description :

Energy Dispersion X-ray Fluorescence Spectrometer TRXS-601after being completely filtered by the optical filter, the original X-ray produced by the X-ray tube and exposed at a high voltage on the sample. It can do qualitative, quantitative, and no sample analysis. Almost all of the elements can be accurately analyzed. The types of elements contained in the sample have been qualitatively analyzed by the position and shape of the spectral peak. Filters are automatically selected and converted. It does not require operators to set multiple test parameters, with a historical query function and test data is automatically saved.

Specification

Analysis Principle

Energy-dispersive X-ray fluorescence analysis

Element Measuring Range

Any element from Na(11)-U(92)

Minimum Measuring Limit

Cd/Hg/Br/Cr/Pb≤2 ppm

Sample Shape

Arbitrary size, any irregular shape

Sample Type

Plastic/metal/film/powder/liquid etc.

X-Ray Tube

Target Material Mo
Tube Voltage 5 to 50 KV
Tube Current 1 to 1000 A

Sample Exposure Diameter

2, 5, 8 mm

Detector

Si-PIN or SDD detector, high-speed pulse height analysis system

SDD Detector

Resolution < 145 eV
Counting Rate > 1000/S
Crystal Area > 15 mm2
Beryllium Window Thickness 0.025 mm
Detector Power < 1.2 W

High Voltage Generator

Special HV generator for X fluorescence

Adc

2048 channels

Filter

6 filters

Sample Observation

200×color CCD camera

Analysis Time

30 to 900seconds, adjustable

System Power Control

+5 VDC at 250 mA (1.2 W)

Constant Cooling Control

400 VDC

Channels

2048

Input

85 to 265VAC,47 to 63 Hz

Voltage Variation

0.0001

Current Variation

0 to rated power

Temperature Variation

voltage or current setting

Stability

0.05%/8 h

Working Environment

Temperature 10 to 35 ˚C

Humidity 30 to 70% RH

Features

  • One of the key indices used to measure the performance of an energy dispersive XRF spectrometer is the detector resolution
  • The X-ray tube can be shielded in full range, leaving only the side window for the X-ray outlet, which has specifically been treated with an embedded lead within
  • For high voltage, insulation and cooling, capillary oil can be utilized with a 0.005-inch Beryllium window, rated consumption power of 50W, and rated power of 50kV
  • Designed to last more than 5000 hours in service
  • Filters are selected and transformed automatically
  • The radiation-protected system, low-radiation ray tube, newly built and thoroughly treated
  • Design of a double-shielded lead plate that is completely enclosed
  • low-radiation x-ray tube that has been properly treated
  • The design features a double-shielded lead plate that is completely contained
  • Filtering device for lead plates that is self-contained. X-ray interrupters employed in the event of an unexpected cover opening
  • Testing for delays as well as an X-ray warning system
  • The workstation has analytical software installed. One-touch operation is easy and simple to use
  • Ergonomic human-machine interaction
  • It offers a sophisticated customizable report mechanism that eliminates the need for operators to set various test settings
  • Test data is automatically preserved when using a history query method
  • Methods of qualitative and quantitative analysis that are cutting-edge Hundreds of elements can be analyzed at once

Application

Environmental protection, geology, minerals, metallurgy, cement, electronics, petrochemicals, polymers, food, medicine, and high-tech materials, among other fields, make extensive use of it, with an important role in product research and development, production process monitoring, and quality management. Additionally, they use the instrument in archaeology, building materials, the RoHS directive, and other industries. It is the best option for enterprise quality control.
